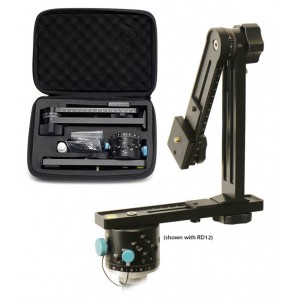

NN5 w/ R-D16 Rotator - FIR

Nodal Ninja 5 with R-D16 rotator - Factory Irregular

More details


$479.95

Availability: In stock

 * Factory Irregular units may have some minor cosmetic flaws from factory. In most cases, there is no perceivable difference and the full warranty is still supplied. For more information, please see this thread on the Nodal Ninja forums.

Nodal Ninja 5 w/RD16 Advanced Rotator

Best of the Best - Combines our NN5 with the RD16 advanced rotator. Click stops as small as 3.75 degrees. Shoot giga-pixel images up to 200mm focal length.

The Nodal Ninja 5 series pano heads were built off the award winning NN3. Slightly bigger stronger and more robust this series will support heavier cameras and lenses. Less than 2 lbs in weight this series is best suited for those with larger cameras like the Nikon D3X or Canon EOS. Some medium format camera will also fit. And lenses as well as cameras usuing optional battery grips.  You can also mount your camera in both landscape (horizontal) and portrait (vertical) orientation.
To learn which Nodal Ninja series pano head is best suited for you visit our product selector page click here

The only difference between NN5 and NN5L "Lite" is that NN5 has the ability to lock the upper rotator lock in any 15 degrees increment. These positive locks can be disengaged on the fly without having to remove your camera by using the built-in locking lever. Because of the positive locks NN5 is able to support up to approx 22 lbs of weight (10 KG). Ideal regular use working load should be about half the maximum weight load.
NOTE: If your camera or camera grip has an offset tripod mount (from center of lens) you will need to order a t-adapter (sold separately).

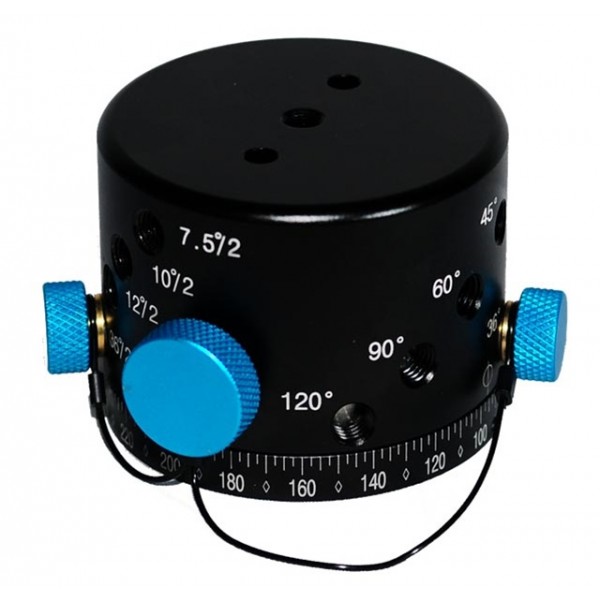

Lower R-D16 Rotator Features:
Part in a series of Fanotec's new top of the line CNC machined advanced rotators. These rotators combines high precision, ease of use, compactness, light weight and durability. The inner ball bearing construction also provides for very fluid rotation. You can now change click stops on-the-fly. Ideal in time sensitive situations in which shooting must be completed quickly, such as in shooting high resolution multi-image mosaics or shooting the same scene at different focal lengths.

The RD16 has 16 different selectable click options suitable for wide angle, standard and long focal length shooting to approx. 200mm.

Features you'll find in this new class of rotators.

  • Made from imported premium quality aluminum alloy.
  • Precision CNC machined components
  • Lubricated bearings for smooth rotation
  • Laser engraved marking
  • Detent interval option can be changed on the fly.
  • More than 10kg loading supported.
  • Detent interval can be changed in seconds on the fly
  • Knob for locking rotation
  • Retainer wire so you don't lose the knobs
  • Ideal for making HDR panos and/or mosaics
  • Great in windy locations.
  • Small nadir footprint diameter of 62mm
  • The unique placement of knobs means that they will never appear in the spherical panos.
  • Fine 2.5 degree rotation markings for making high resolution mosaics.
  • 16 different degree stop increments (with equivalent number of stops around) include:
    • 3.75 (96 stops)*
    • 5 (72 stops)*
    • 6 (60 stops)*
    • 7.5 (48 stops)
    • 10 (36 stops)
    • 12 (30 stops)
    • 15 (24 stops)
    • 18 (20 stops)*
    • 20 (18 stops)
    • 24 (15 stops)
    • 30 (12 stops)
    • 36 (10 stops)
    • 45 (8 stops)
    • 60 (6 stops)
    • 90 (4 stops)
    • 120 (3 stops)
      *requires dual detent plungers (included)

Technical Specifications
Weight: 1075gm
Lower assembly: 210mm x 36mm x 62mm (incl rotator). Rotator diameter 62mm
Upper assembly: 210mm x 48mm x 55mm
Material = Anodized aluminum
Base Color = Non-glare black
Load Limit = 10kg
Accuracy: +/- 2 degrees
note: the bubble levels are extremely sensitive so some bubble drift may occur during rotation. The drift is not enough to cause problems with stitching. Just level the first shot only and you are good to go for the entire sequence of shooting.

Package includes:
Nodal Ninja 5 with RD16 advanced rotator
Hard shelled carry case with dual zippers
2nd generation Camera Mounting Plate (CP-2)
3ea Metal Rail Stops
Hex Key + Misc parts
Quick Reference Guide



  • NN5 QRG
    A quick reference guide for the Nodal Ninja 5
  • NN5 User Manual
    A user manual for the Nodal Ninja 5 series
  • NN5 RD16 QRG
    A quick reference guide for the Nodal Ninja 5 series and R-D16 rotator.
