NN5 Starter Pack - FIR
Nodal Ninja 5 Starter Pack - Factory Irregular
Nodal Ninja 5 Starter Pack - Factory Irregular
* Factory Irregular units may have some minor cosmetic flaws from factory. In most cases, there is no perceivable difference and the full warranty is still supplied. For more information, please see this thread on the Nodal Ninja forums.

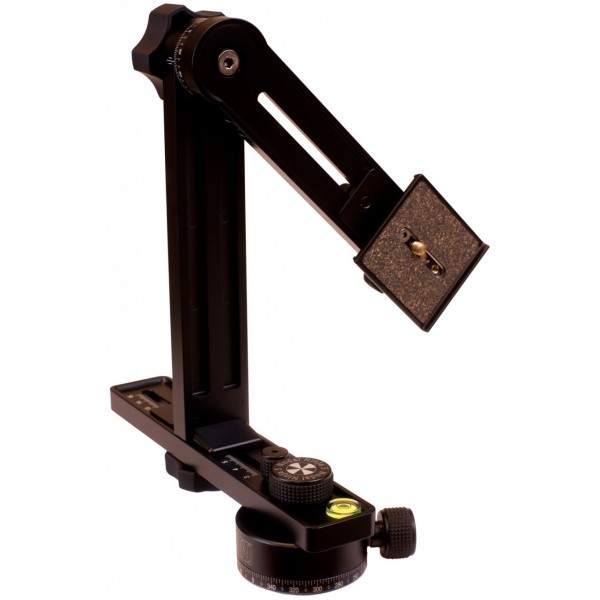

Nodal Ninja 5 with Standard Rotator
The standard lower rotator uses reversible detent rings from 10 degrees to 120 degrees stops. Unlike the 5L the upper rotator can be locked in any 15 degree increment.

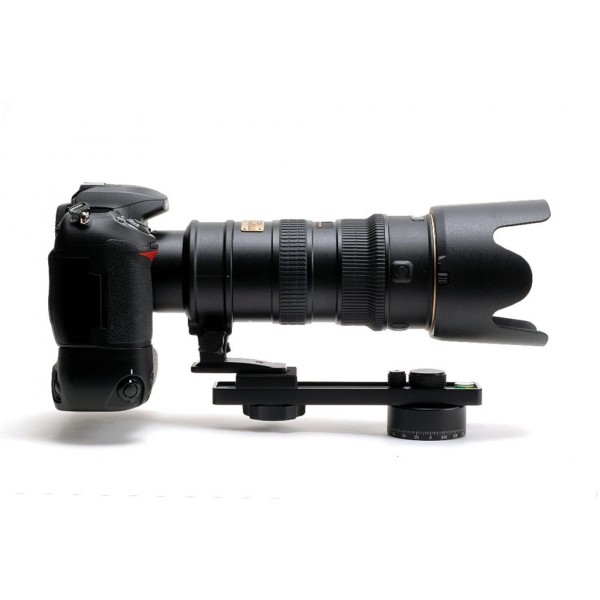

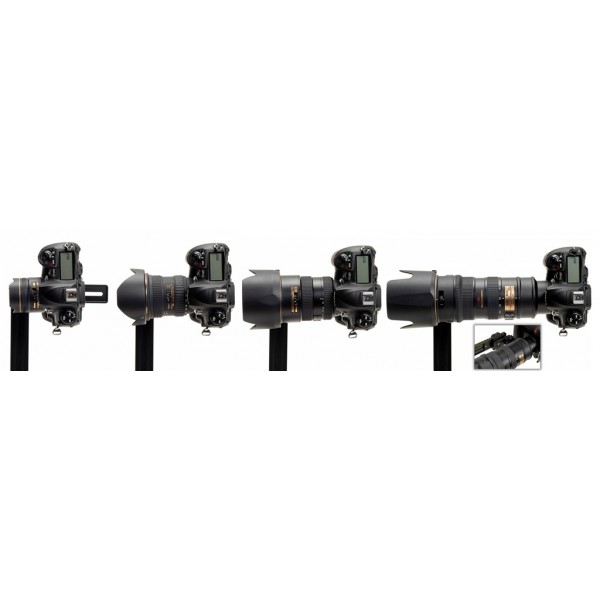

The Nodal Ninja 5 series pano heads were built off the award winning NN3. Slightly bigger stronger and more robust this series will support heavier cameras and lenses. Less than 2 lbs in weight this series is best suited for those with larger cameras like the Nikon D3X or Canon EOS. Some medium format camera will also fit. And lenses as well as cameras usuing optional battery grips. You can also mount your camera in both landscape (horizontal) and portrait (vertical) orientation.
To learn which Nodal Ninja series pano head is best suited for you visit our product selector page click here
The only difference between NN5 and NN5L "Lite" is that NN5 has the ability to lock the upper rotator lock in any 15 degrees increment. These positive locks can be disengaged on the fly without having to remove your camera by using the built-in locking lever. Because of the positive locks NN5 is able to support up to approx 22 lbs of weight (10 KG). Ideal regular use working load should be about half the maximum weight load.
NOTE: If your camera or camera grip has an offset tripod mount (from center of lens) you will need to order a t-adapter (sold separately).
NN5 with Standard Rotator Model Features:
Technical Specifications:
Weight: 868g
Dimensions (Folded)
Lower assembly: 210mm x 36mm x 47mm
Upper assembly: 210mm x 48mm x 55mm
Lower Rotator diameter 80mm
Material: Anodized aluminum
Base Color: Non-glare black
Maximum Load Limit: 10kg
Ideal working weight load: 5kg
Material: Anodized aluminum
Mounting threads: 3/8 inch with 3/8 to 1/4 screw adapter
Lower Rotator Diameter: 59mm
Detent plunger uses ball bearing
Lock knob to lock rotation
Upper rotator uses locking lever allowing positive locks possible in 15 degree increments. In unlock position upper rotator uses compression lock in any position. (when using compression lock max weight load is 5kg.
2.5 degree reference marks on rotators

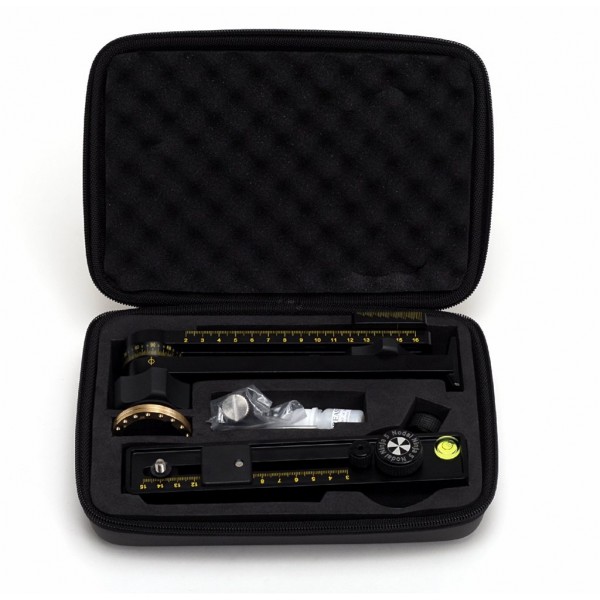

Starter Package includes:
NN5 with standard Rotator
2 detent rings (10/12, 45/60)
2nd Generation Camera Mounting Plate (CP-2)
3ea metal rail stops
Hard shelled zippered case
Hex Keys + Misc baggie of parts
Quick Reference Guide
(Optional Detent rings are available - click here)
7 day strict return policy on NN5 products (please test as soon as you get the item to make sure it is right for you)
