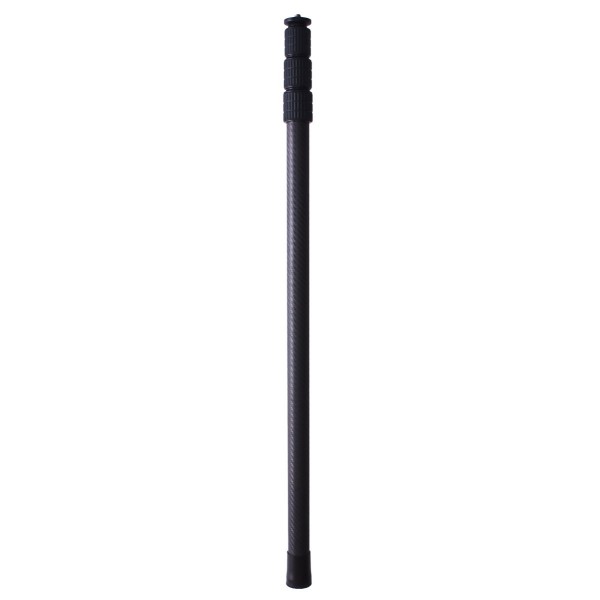

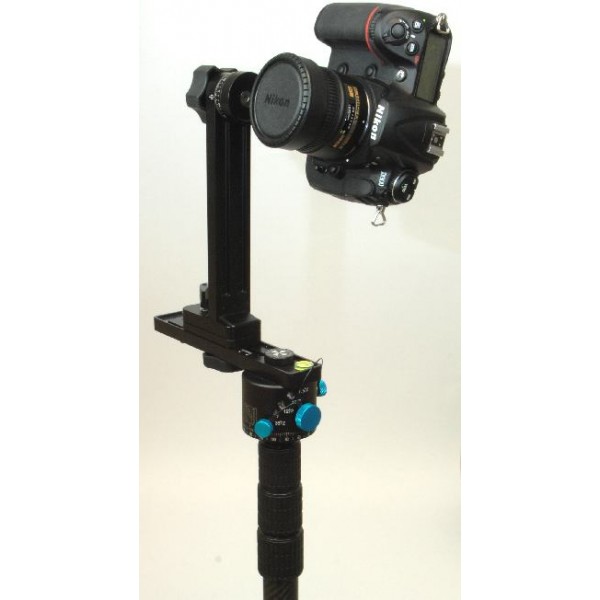

Fanotec Series 1 Pole

Series 1 panoramic pole for aerial panoramas.

More details


$346.95

Availability: In stock

The panoramic community has been waiting for a portable, easy to use and yet rigid enough pole for making aerial panoramas using typical DSLRs in the market. Fanotec poles are easy to operate and carry. They can be extended to maximum height in minutes by pushing up and locking each telescoping section. Made of carbon fiber tubes, they are light-weight, portable and are ideal for on-the-go situations and areas not accessible to vehicle mounted units.



Fanotec poles are modular in design. Users can start up with a small module and gradually build up the height by stacking it to a larger module. Each module can be used independently (additional parts needed), creating an array of short poles with different stiffness for different applications, such as horizontal pole for cliff panoramas.


Aerial panoramic photography is ideal for tourism, festivals, surveys, construction planning, and many other applications. It provides a new, exciting perspective of landmarks and landscapes at elevated height. Obstacles no longer obstruct the view at the location.


Features and Highlights:

  • Thick cross-layered carbon fiber tubes for maximum rigidity and durability
  • Light weight
  • Compact in size - fit most cars

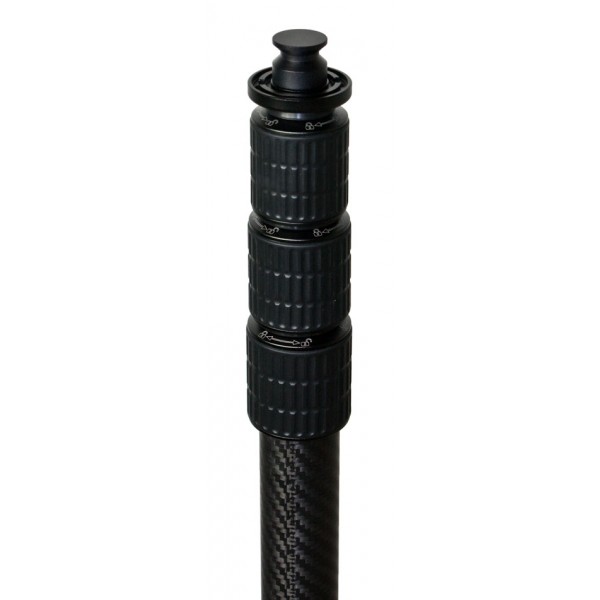

  • Anti-rotation system maintains rigid azimuth / yaw locking /accuracy

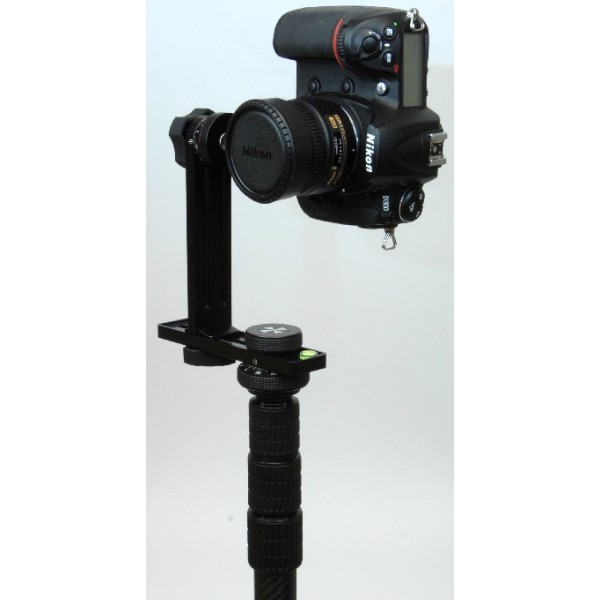

  • Support a large range of DSLRs

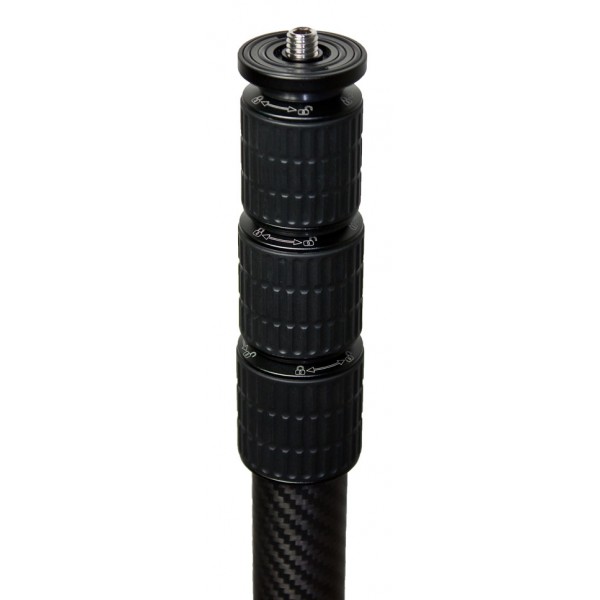

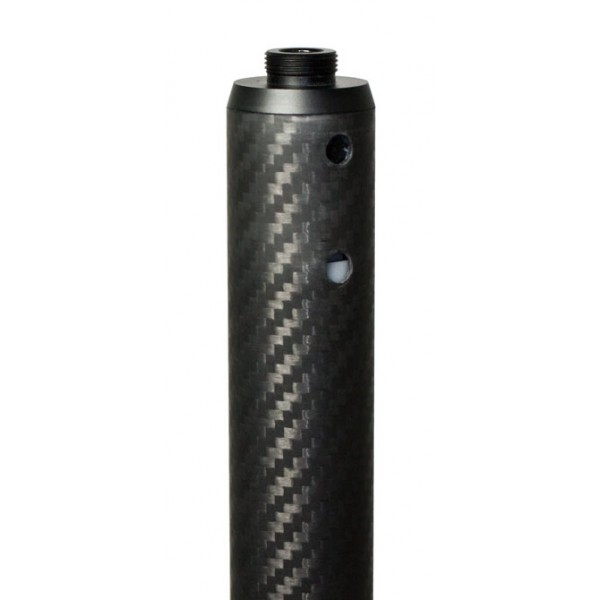

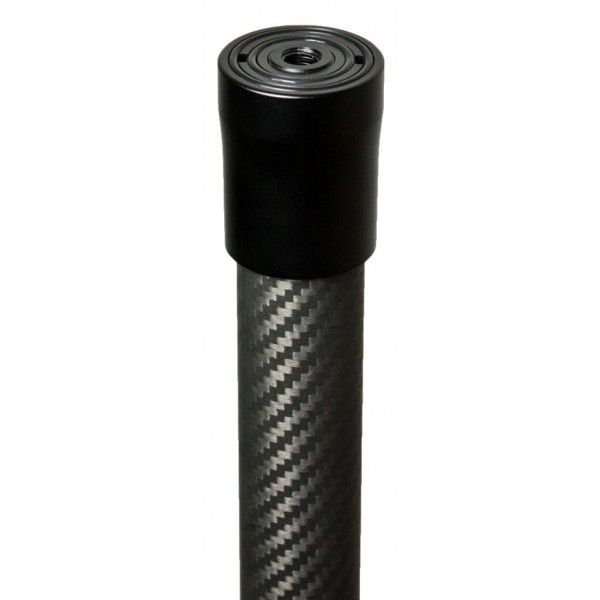

  • 3/8" stud and 3/8" female receiver for working with other accessories

Specifications:

Description

Series 1

Max Height

2.75m (9’)

Contracted Length

0.81 m (2’ 8”)

Number of Sections

4

Number of Modules

1

Tube Diameters

20, 24, 28, 32 mm

Max  Load

15 kg (33lb)

Max Load at Max Height

2kg (4.4lb)

Weight

0.75 kg (1.6lb)

Attachment Size

3/8" stud and 3/8" female receiver

Suitable for Horizontal application

No

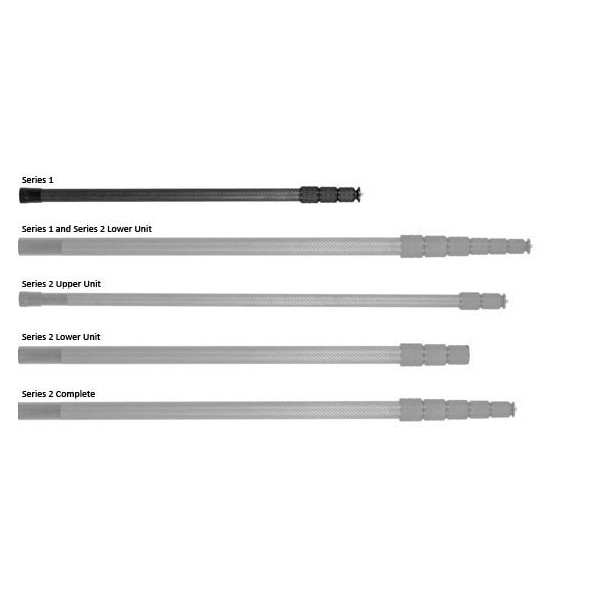

Series 1 can be stacked to Series 2 to gain a higher max height.


Recommended loading is 2kg (4.4lbs) for all poles at full vertical extension.


FOR A LIMITED TIME WE ARE INCLUDING A "FREE WIRELESS REMOTE" WITH EACH ORDER (retail value $25)


For help in deciding which pole best suits your needs Wim Koornneef, expert in pole panoramic photography, has shared with us images made with Pole Series 1 and 2 - click here


Wim also shares sample scenarios for use of each series of poles (1&2) and displays poles at various extensions. Learn some great insider tips from the author as well.


Note: The Fanotec Pole Series 1 is more intended for commercial applications and not recommended for those new to pole photography. We are developing accessories to make them more user friendly to novice users.


IMPORTANT SAFETY NOTES:

* Fanotec Carbon Fiber Poles conduct electricity very well. Please take extreme caution when raising and using these poles around electrical wires.
* Fanotec poles are NOT designed to be mounted onto a rigid tripod. The pole base can be damaged by the added torque generated with the use of camera and lens at full extension. We are developing dedicated accessories for safe use with tripods.
